Sans Digital MobileSTOR MS28X 2.5" 8 bay SAS/SATA
Price: $99800
Sans Digital MobileSTOR MS28X 2.5" 8 bay SAS/SATA
  2. Save to wishlist

Sans Digital MobileSTOR MS28X 2.5" 8 bay SAS/SATA to 2 mini-SAS Enclosure with ARC1223X 2-Port Mini-SAS 6G SAS/SATA PCIe 2.0 x8 RAID 6 Controller - (MS28XHP)

Item#:  9004315  | Model#: MS28XHP
Temporarily out of stock. Order today and we'll deliver when available. (Details)

Sans Digital MobileSTOR MS28X 2.5" 8 bay SAS/SATA Product Details

MobileSTOR MS28X Series with a ARC1223X 2-Port Mini-SAS 6G SAS/SATA PCIe 2.0 x8 RAID 6 Controller - Bundle

The MobileSTOR MS28X Series is a 8-bay tower with a dual mini-SAS connection which provides high performance JBOD storage. Utilizing high bandwidth mini-SAS (SFF-8088) cabling, the MS28X supports SAS or SATA hard drives to deliver superior read / write speeds that are crucial in performance-driven environments such as video editing industry and server application. Two mini-SAS ports combine eight hard drive connections into two cables, and reduce possible points of failures while preserving uninterrupted data transfer. The MS28X also supports SATA and SAS drives, allowing users to have the option to choose between high performance and high capacity storage solutions. Hard drive and RAID controller bundle options are available. When utilizing a SAS or SATA RAID controller, the unit could effortlessly support multi-streaming of compressed high-quality playback or a single-stream of uncompressed 10-bit high definition video under various RAID modes.


  • Form Factor : 8 bay Tower
  • HDD Trays : 8 Hot-Swappable 2.5"
  • RAID Level : JBOD
  • Maximum Capacity : 8TB
  • Auto Rebuilding Supported via RAID controller
  • Hot-Spare Supported via RAID controller
  • Host Interface & Transfer Rate Mini-SAS * 2 (2400 Gb/s mini-SAS interface)
  • Drive Interface 2.5 SAS / SATA I & SATA II (Both 9.5mm and 12.5mm hard drives height supported)
  • Cooling Fan Ball Bearing Cooling Fan x 3
  • Power Supply 150W; Auto switch for 100V - 240V; 50 - 60Hz
  • Status Indicators LEDs for HDD, Temperature and Fail LED
  • Dimension (in) : 7.0" x 10.5' x 5.5"
  • Weight (lb) : 9 lb
  • Safety Regulations : CE, FCC, UL, RoHS

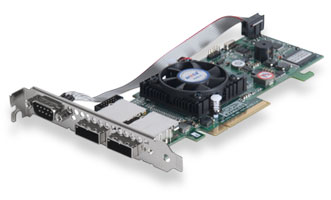

The ARC1223X high-performance PCIe 2.0 x8 to SAS RAID host adapters can provide up to 8 SAS/SATA 6G devices per ports. Based on the same RAID kernel of field-proven external RAID adapters and RAID subsystem, HA-ARC-ARC1882X is widely compatible and supported in Windows, MAC, Linux, VMware, FreeBSD and Solaris. Applications that benefit most features from these controllers include server RAID solutions, web servers, supercomputing, near-line backup, server virtualization, security systems and streaming applications.


  • Up to 4 drives per mini-SAS (SFF-8088) port, total 8 drives supported.
  • 800MHz RAID on Chip I/O processor with SAS controller.
  • 512MB on-board DDR2-800 SDRAM with ECC with write-through or write-back cache support.
  • Low-profile supported.
  • Multi-adapter support for large storage requirements.
  • Supports RAID 0, 1, 10, 3, 5, 6, 30, 50, 60, Single Disk or JBOD.
  • Multiple RAID set supported.
  • Online RAID level/stripe size migration, online capacity expansion and RAID level migration simultaneously.
  • Instant availability and background initialization.
  • NVRAM for RAID configuration & transaction log.
  • Redundant flash image for adapter availability.
  • SMTP support for email notification.
  • SNMP support for remote manager.
  • Field-upgradeable firmware in flash ROM.
  • Web browser-based storage manager via Http proxy server for all operating systems.
  • Optional backup battrey module, BBM, support (AC-SAN-1223XBBM).

Supported OS:

  • Windows 7/2008/Vista/XP/2003
  • Linux
  • FreeBSD
  • VMware
  • Solaris 10/11 x86/x86_64
  • Mac OS X 10.4.x/10.5.x/10.6.x/10.7.x
  • Manufactured by: Sans Digital
    Warranty provided by: Sans Digital
    UPC No:
    Mfg Part No: MS28XHP
  • Box Size: ( Length:0, Width:0, Depth:0)
    Shipping Weight: 5.0000 pound(s)
