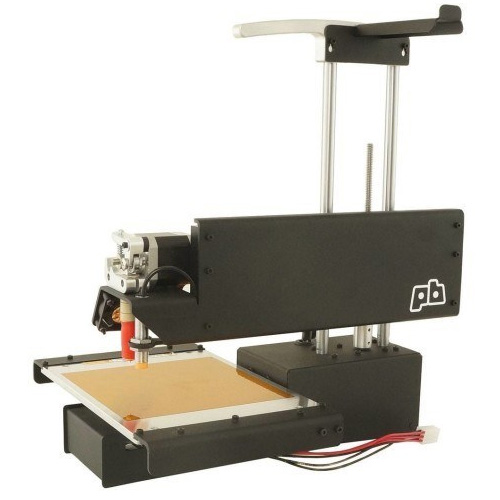

printrbot Assembled Simple Spool Rack 3D Printer

printrbot Assembled Simple Spool Rack 3D Printer with Heated Bed, 50 Microns, 80mm/sec - Metal construction combined with a GT2 belt pulley system produces a 3D print that rivals those of (PBMSASMH)

Item#:  13674825  | Model#: PBMSASMH

Currently Out Of Stock!

printrbot Assembled Simple Spool Rack 3D Printer Product Details

Assembled Printrbot Simple
with Heated Bed

Printrbot’s first all-metal 3D Printer now available with a heated bed.  The metal construction combined with a GT2 belt pulley system produces a 3D print that rivals those of other manufacturers which cost thousands more!

Technical Specifications:

  • Model: 1403
  • Build Volume: 6? x 6? x 6? / 150mm x 150mm x 150mm / 216 cubic inches
  • Print Resolution: 50 Microns
  • Print Speed: 80mm/sec max recommended
  • Filament: 1.75mm PLA (sample included) and ABS
  • Extruder: Alu Extruder (direct drive) with 1.75mm Ubis Hot End with 0.4mm nozzle
  • Auto Leveling: Auto-Leveling Probe works with software to calibrate Z axis height (see video)
  • Print Bed:  Heated (0.3mm level tolerance).  Max temperature – 80C – See this video for tips on making ABS stick
  • Construction: Powder coated steel and aluminum body with 8mm and 12mm diameter linear shaft
  • Belt: GT2
  • Pulleys: 20 tooth, dual flange GT2 aluminum
  • Electronics: Printrbot Rev F Printrboard with micro-USB connection (cable included) and micro SD card slot for untethered printing
  • Software:Printrbot does not provide software, but recommends Cura v15.04 – available for free download.
  • Power Requirements: 12V (29 amp) ATX power supply (included)
  • Motors: NEMA 17 stepper
  • Overall Footprint*: 18? x 17? x 13? (L x W x H)

*Overall Footprint is the space needed to operate the full range of motion for the machine – X, Y, and Z axes travel.


  • Manufactured by: printrbot
    UPC No:
    Mfg Part No: PBMSASMH
  • Box Size: ( Length:0, Width:0, Depth:0)
    Shipping Weight: 19.2900 pound(s)
